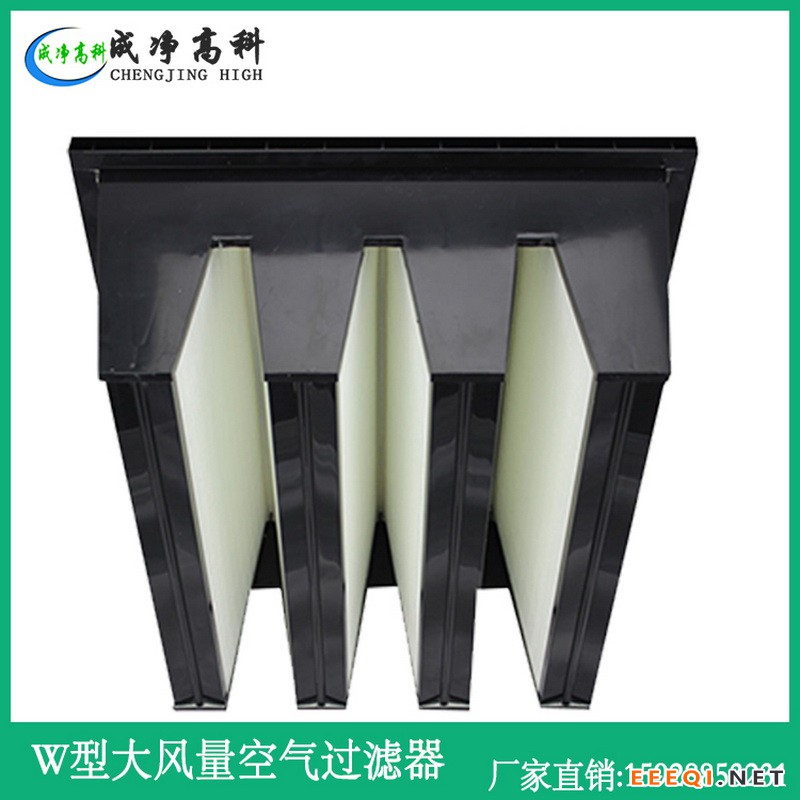

W型高效空气过滤器
W type and efficient air filter
特点 Features
●使用寿命长
●大风量、阻力低、容尘量大
●适用于大风量空调通风系统的中级过滤
●Long service life
●Large volume, low resistance and large amount of dust
●For large volume air conditioning and ventilation system of the intermediate filtration
构成材料及运行条件
Materials and operating conditions
●框材：塑胶外框 ●分隔物：热熔胶
●External frane：Plastic box ●Space: glue
●密封物：聚胺脂胶 ●滤料：玻纤滤纸
●Sealant：Gel-glue ●Filter media：Glass fiber filter
●使用温度、湿度：80℃、80% 以内 ●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数（Standard specification）
型号 model | 外形尺寸 Outside dimensions (mm) | 额定风量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率（比色法） Efficiency (%) | 滤料Filter materials |
CJ-HW-1 | 287×287×292 | 800 | ≤220 | ≥99.99 | 玻璃纤维 Glass fiber |
CJ-HW-2 | 490×287×292 | 1200 | ≤220 | ≥99.99 | |
CJ-HW-4 | 592×490×292 | 2000 | ≤220 | ≥99.99 | |
CJ-HW-5 | 592×490×292 | 2700 | ≤220 | ≥99.99 | |
CJ-HW-6 | 592×287×292 | 1600 | ≤220 | ≥99.99 | |
CJ-HW-7 | 592×592×292 | 2400 | ≤220 | ≥99.99 | |
CJ-HW-8 | 592×592×292 | 3200 | ≤220 | ≥99.99 |
*可要据用户要求定制不同规格型号的过滤器
According to user requirements to customize different specifications and types of filter
