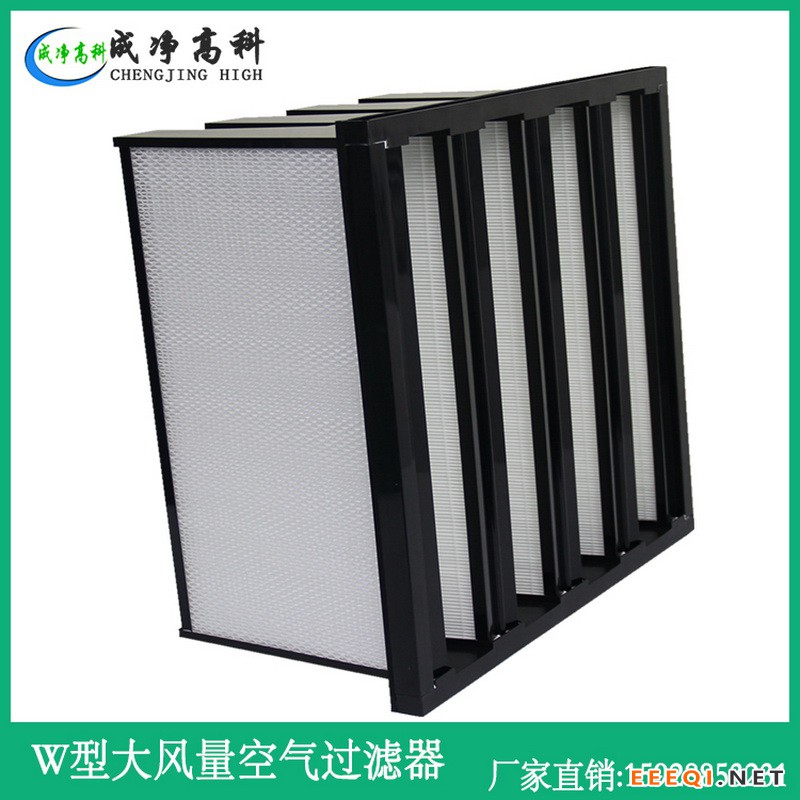

W型高效空气过滤器
资阳市医院过滤器|资阳市制药厂空气过滤器|资阳市高效空气过滤器
W type and efficient air filter
特点 Features
●使用寿命长
●大风量、阻力低、容尘量大
●适用于大风量空调通风系统的中级过滤
●Long service life
●Large volume, low resistance and large amount of dust
●For large volume air conditioning and ventilation system of the intermediate filtration
构成材料及运行条件
Materials and operating conditions
●框材：塑胶外框 ●分隔物：热熔胶
●External frane：Plastic box ●Space: glue
●密封物：聚胺脂胶 ●滤料：玻纤滤纸
●Sealant：Gel-glue ●Filter media：Glass fiber filter
●使用温度、湿度：80℃、80% 以内 ●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数（Standard specification）
|
型号 model |
外形尺寸 Outside dimensions (mm) |
额定风量 Rated air flow (m3/h) |
初阻力 Imitial resistance (Pa) |
效率（比色法） Efficiency (%) |
滤料Filter materials |
|
CJ-HW-1 |
287×287×292 |
800 |
≤220 |
≥99.99 |
玻璃纤维 Glass fiber |
|
CJ-HW-2 |
490×287×292 |
1200 |
≤220 |
≥99.99 |
|
|
CJ-HW-4 |
592×490×292 |
2000 |
≤220 |
≥99.99 |
|
|
CJ-HW-5 |
592×490×292 |
2700 |
≤220 |
≥99.99 |
|
|
CJ-HW-6 |
592×287×292 |
1600 |
≤220 |
≥99.99 |
|
|
CJ-HW-7 |
592×592×292 |
2400 |
≤220 |
≥99.99 |
|
|
CJ-HW-8 |
592×592×292 |
3200 |
≤220 |
≥99.99 |
*可要据用户要求定制不同规格型号的过滤器
According to user requirements to customize different specifications and types of filter
